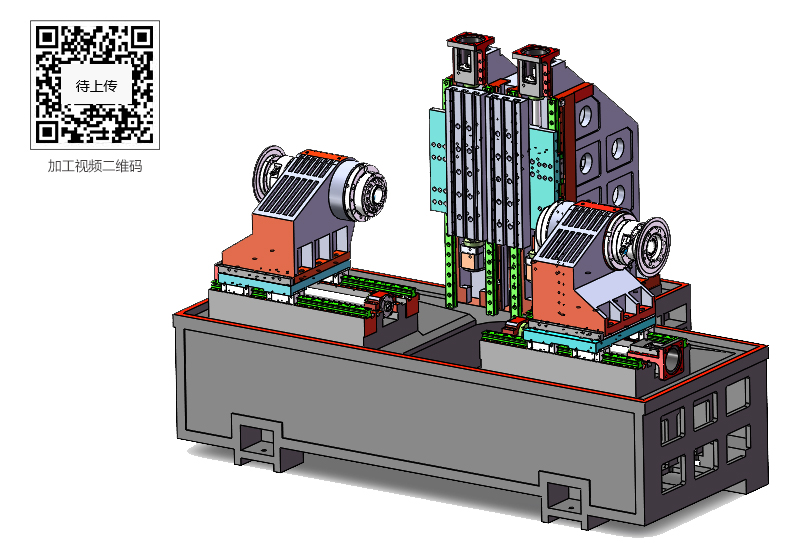

LDS-4636SL-CFS-22TB 双电主轴双立排刀车方数控车床参数 LDS-4636SL-CFS-22TB Dual Electric Spindles Dual Vertical Linear Tool Square Turning CNC Lathe Parameters |
项目 Item | 名称 Designation | 4636SL-CFS双电主轴双立排刀 Dual electric spindles dual vertical linear tool | 品牌 Brand | 备注 Remark |
正轴SP1 Main-spindle SP1 | 副轴SP2 Sub-spindle SP2 |
|
|
加工范围 Machining range | 床身最大回转直径mm Maximum swing diameter over bed mm | Φ200 | Φ200 |
|
|
滑板最大回转直径mm Maximum swing diameter over the slide mm | Φ150 | Φ150 |
|
|
最大加工直径（盘类）mm Maximum machining diameter (for Disc-type workpieces) mm | Φ300 | Φ300 |
|
|
最大加工工件长度mm Maximum machining length of workpiece mm | 180 |
|
|
最大棒料通孔直径mm Maximum bar through-hole diameter mm | Φ45 | Φ35 |
|
|
排刀板上至主轴中心高 Height from linear tool to spindle center | 80 | 80 |
|
|
行程及最快进给 Stroke and maximum feed rate | X轴有效行程（半径）mm X-axis effective travel （radius） mm | 500 | 500 |
|
|
Z轴有效行程mm Z-axis effective travel mm | 335 | 335 |
|
|
X/Z轴快速移动率 X/Z-axis rapid traverse rate | 24m/min | 24m/min |
|
|
主轴 Spindle | 主轴鼻端形式 Spindle nose type | A2-5 | A2-4 |
|
|
主轴最高转速 rpm Maximum spindle speed rpm | 5800 | 6000 |
|
|
电主轴单元通孔 Electric spindle unit through hole | 电主轴Φ46 Electric spindle Φ46 | 电主轴Φ36 Electric spindle Φ36 |
|
|
卡盘规格 Chuck specification | 6寸 6 Inch | 5寸 5 Inch |
|
|
回转油缸规格 Rotary hydraulic cylinder specification | 646 | 536 |
|
|
主轴中心到地面距离mm Disdance from spindle center to floor mm | 1050 |
|
|
主轴中心到前门距离mm Distance from spindle center to front door mm | 约570 About 570 | 约570 About 570 |
|
|
主轴重复定位精度 Spindle repeat positioning accuracy | ≤10角秒 ≤10 arcseconds | ≤10角秒 ≤10 arcseconds |
|
|
主轴分度精度 Spindle indexing accuracy | ≤70角秒 ≤70 arcseconds | ≤70角秒 ≤70 arcseconds |
|
|
加工精度 Machining accuracy | X/Z轴重复定位精度mm X/Z-axis repeat positioning accuracy mm | ±0.003 | ±0.003 |
|
|
X/Z轴定位精度mm X/Z-axis positioning accuracy mm | ±0.005 | ±0.005 |
|
|
动力头规格 Power head specification | 动力头型号 Power head model number |
|
|
|
动力刀/把 Power tool / pieces | 2 |
|
|
动力头规格mm Power hear specification mm | ER25 |
|
|
动力头中心高mm Power head center height mm | 44 |
|
|
Y行程mm Y-axis travel (mm) | 无 No |
|
|
电器控制 Electrical control | 控制系统 Control System | 22TB | 新代 SYNTEC | 选配 Optional |
电主轴KW Electric spindle KW | 11.76 | 8.99 |
|
|
X轴伺服电机 KW X-axis servo motor KW | 2.4（Am11） | 2.4（Am11） | 新代 SYNTEC | 选配 Optional |
Z轴伺服电机 KW Z-axis servo motor KW | 2.4（Am11） | 2.4（Am11） | 新代 SYNTEC | 选配 Optional |
Y轴伺服电机 KW Y-axis servo motor KW | 无 No | 新代 SYNTEC | 选配 Optional |
动力头电机 KW Power head motor KW | 1.7KW | 新代 SYNTEC | 选配 Optional |
刀塔分度电机 KW Turret indexing motor KW | 无 No |
|
|
机台结构形式及配件规格 Machine structure type and accessories specifications | 床身结构形式 Bed structure type | 整体铸件平床身 Integral casting flat bed |
|
|
X轴线轨规格mm X-axis linear guide specification mm | 35滚柱 35 Roller | 35滚柱 35 Roller | 上银/银泰 Hiwin,PMI |
|
Z轴线轨规格mm Z-axis linear guide specification mm | 35滚柱 35 Roller | 35滚柱 35 Roller | 上银/银泰 Hiwin,PMI |
|
X轴丝杆直径/螺距mm X-axis lead screw diameter & pitch (mm) | Φ3210 | Φ3210 | 上银/银泰 Hiwin,PMI |
|
Z轴丝杆直径/螺距mm Z-axis lead screw diameter & pitch (mm) | Φ3210 | Φ3210 | 上银/银泰 Hiwin,PMI |
|
外形尺寸 Overall dimensions | 长 X 宽 X 高mm L×W×H mm | 约2650*2100*2110 About 2650*2100*2110 |
|
|
光机重量KG Net weight KG | 约3500 About 3500 |
|
|
